poz_id

CROSSBIKE_BEL_23_01

Modellname

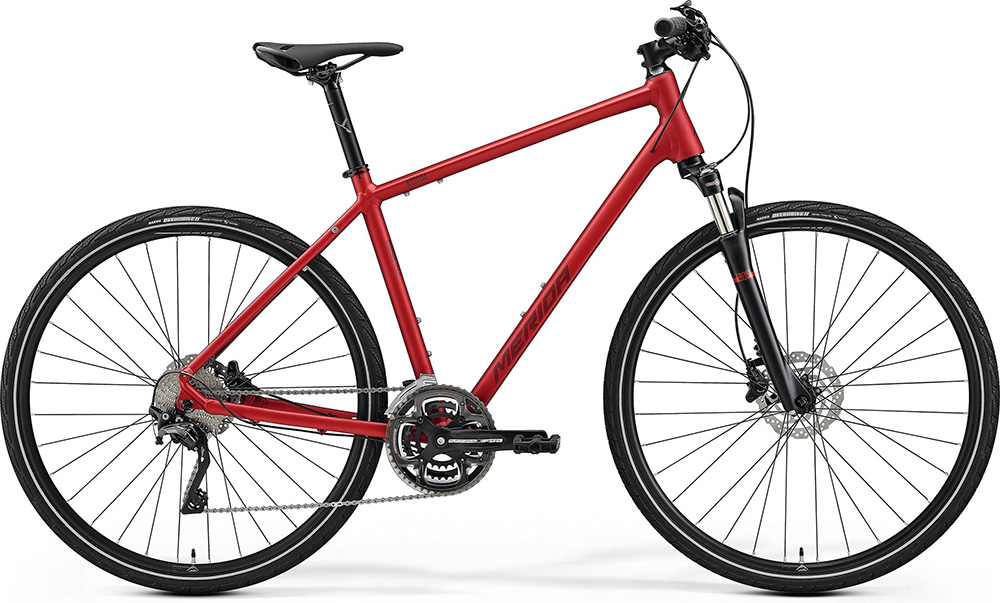

CROSSWAY 500

Titel2

Jahrgang

2022

Marke

Merida

Modell

CROSSWAY 500

Kategorie

Crossbikes

Rahmen

CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

Gabel

Suntour NCX D-RL, Coil, 63mm suspension travel, Remote Lockout, 700x50C max. wheelsize

Vorbau

MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, 5° stem angle, 80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL

Steuersatz

MERIDA M2340 Neck

Lenker

MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise

Schaltwerk

Shimano XT Shadow

Umwerfer

Shimano Deore

Schalthebel

Shimano Deore

Bremsen

Shimano MT-400, 2 piston/ 160 mm

Bremshebel

Shimano MT-200

Kurbelgarnitur

FSA Alpha Drive 48-36-26 teeth 170 mm-XXS/XS/S, 175 mm-M/XL

Innenlager

Pedal

VP VPE-891

Sattelstütze

MERIDA COMP CC, material: aluminium, 30.9mm diameter, 12mm setback

Sattel

MERIDA EXPERT TK, V-mount

Felgen

MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium

Nabe vorne

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock

Nabe hinten

Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock

Kette

KMC X10

Kassette

Shimano HG500, 11-34 teeth, 10 speed

Reifen

Maxxis Overdrive II, 700x40C, fold, reflective stripe, Silkworm // Maxxis Overdrive II, 700x40C, fold, reflective stripe, Silkworm

Griffe

MERIDA EXPERT EC

Gewicht

Rahmengrössen

XXS, XS, S, M, L, XL

Farbe

MATT BURGUNDY RED

Hinweis

Specs können leicht abweichen
